UltiMaker Factor 4 3D Printer
Introduction
Industrial-grade performance
Reliable and repeatable results
UltiMaker Factor 4, our new industrial-grade 3D printer, streamlines production, simplifies processes, and keeps operations running.
With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivaled predictability and minimal variance.
Built for the factory floor
The seamless, powerful upgrade that your production workflows demand.
Factor 4 elevates manufacturing with its triple-insulated build chamber and direct dual extrusion.
The automated material handling system maintains filament quality.
And the robust, temperature-controlled design ensures consistent production output also on complex and challenging designs.
Reliability, repeatability and validation
High quality results, Every time, Anywhere.
Achieve the highest print accuracy of any UltiMaker printer – even at high resolution on small design features.
These will achieve a dimensional accuracy of ± 0.2 mm ± 0.2% of feature nominal length over the full build plate and across multiple printers.*
* Print success rate tested using UltiMaker PLA, Tough PLA, PETG, PET CF, and PPS CF.
Achieve more with FDM 3D printing
Direct drive extrusion for flexible materials.
The Factor 4 excels at quickly switching from 3D printing highly flexible materials all the way to strong composites, like UltiMaker PPS CF.
Its H-bridge gantry and direct drive head enable rapid dual material printing.
High quality, Every time, Anywhere
Success with every 3D print.
Factor 4 makes it possible to additively produce & deploy structural integrity verified parts across different locations.
The low variance, less than 10%, in extrusion rate and mechanical properties batch after batch, part after part is a combination of the H-bridge gantry, closed loop feed control, and uniformly controlled build plate temperatures – with a maximum variation of 2 °C across the X and Y axes.
A future-proof investment
Versatility and quality that translates to fast ROI.
Regular updates ensure that your Factor 4 will evolve over time – far beyond the 12 to 18 months it will take to achieve return on investment.
The 3D printer's modular build allows our global support network to quickly replace parts, minimizing downtime.
Built on more than 13 years of UltiMaker legacy – dedicated to innovation, accessibility, and openness
Integrated HEPA filter
Independently tested to remove up to 95% of ultrafine particles to increase air quality peace of mind.
The fully enclosed build chamber also boosts print quality.
Onboard structural integrity validation
After every print job, receive an in-depth report on extrusion parameters deviations from nominal values, their locations, and their severity in the 3D model.
Automated material handling with low humidity storage
Automatic pre-loading and spool switching (up to 6) with RH < 15% on any external conditions.
Emergency stop button
A conspicuous red STOP button ensures easy and safe operation should there be a need to immediately halt printing.

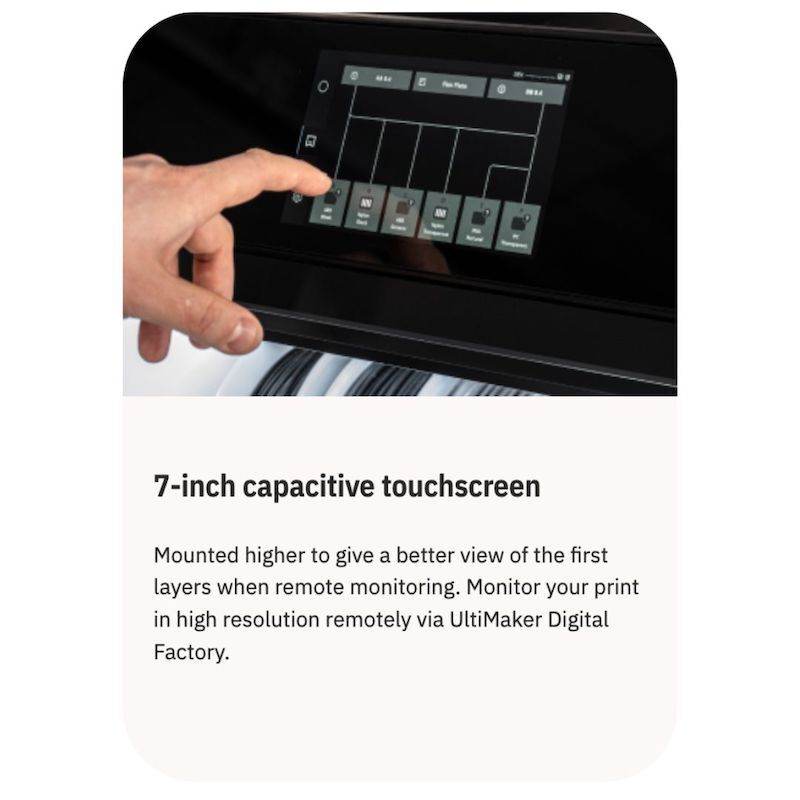

7-inch capacitive touchscreen
Mounted higher to give a better view of the first layers when remote monitoring.
Monitor your print in high resolution remotely via UltiMaker Digital Factory.

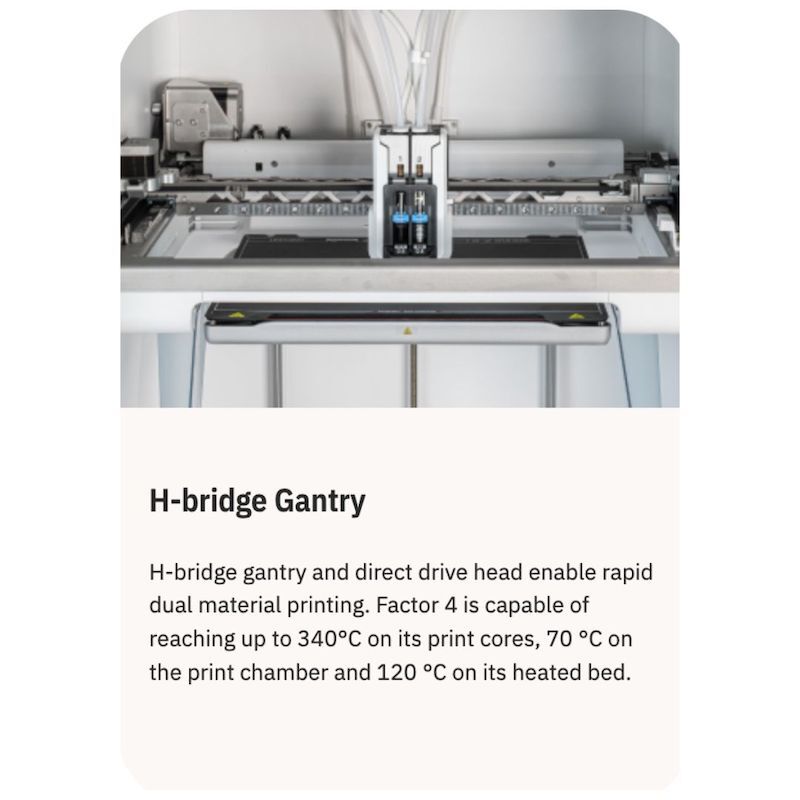

H-bridge Gantry
H-bridge gantry and direct drive head enable rapid dual material printing.
Factor 4 is capable of reaching up to 340°C on its print cores, 70 °C on the print chamber and 120 °C on its heated bed.

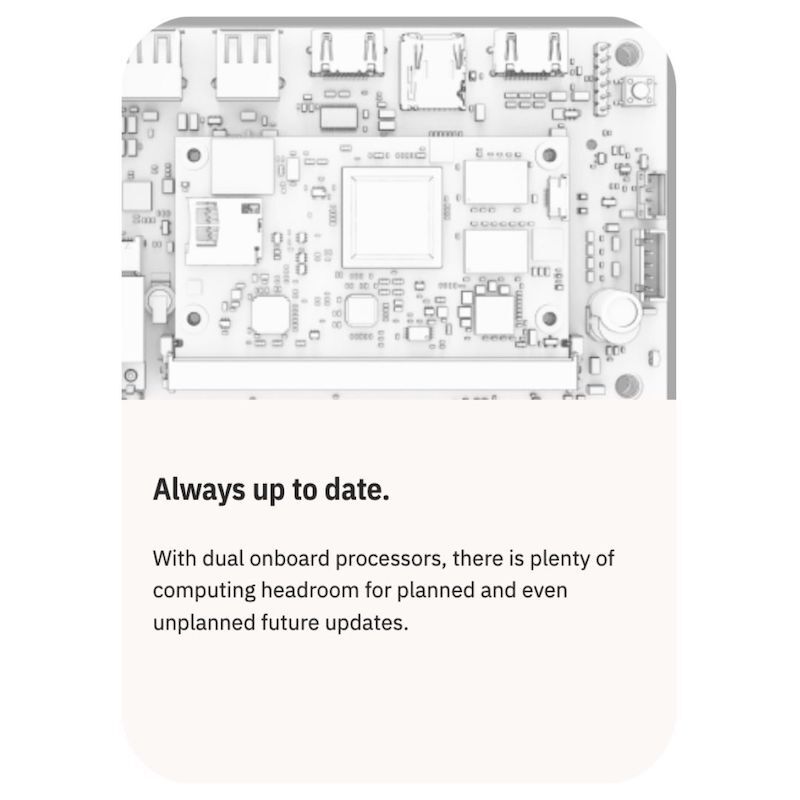

Always up to date
With dual onboard processors, there is plenty of computing headroom for planned and even unplanned future updates.
Highlights
1. Built for the factory floor.
2. Reliability, repeatability and validation.
3. Achieve more with FDM 3D printing.
4. A future-proof investment.
Technical Specification
Dimensions
Build Volume: 330 x 240 x 300 mm
Assembled Dimensions (W x D x H): 695 x 605 x 1287 mm
Print Technology: Fused Deposition Modeling (FDM)
Compatible Filament Diameter: 2.85 mm
Weight: 120 kg
Maximum Power Output: 600 W
Printer Properties
Layer Resolution: 60 – 400 microns (depending on print core nozzle size and selected print profile)
XYZ Resolution: 6.25, 7.8, 2.5 microns
Feeder Type: Dual-extrusion, direct drive print head and swappable print cores
Display: 7 inches interactive touchscreen (resolution 1024 × 600 px)
Print Core Replacement: Swappable print cores
Print Head: Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection.
Nozzle Diameters: 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Operation Parameters
Filter Technology: Replaceable HEPA H13 filter
Nozzle Temperature: 180 - 340 °C
Build Plate: PEI-coated flexible steel build plate
Operating Ambient Temperature: 18 - 30 °C (64 – 86 °F) , Humidity: 30 – 70% RH
Non-operating Temperature: 5° – 40 ºC (41 – 104 °F) , Humidity: 20 – 90% RH
Ecosystem
Supplied Free Software: UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software
Supported OS: MacOS, Windows, and Linux
Plugin Integration: SolidWorks, Siemens NX, Autodesk Inventor
Supported File Types: UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
Printable Formats: G, GCODE, GCODE.gz, UFP
File Transfer: Wi-Fi (2.4 and 5 GHz), Ethernet, USB
Safety and Compliance
More Information: Learn more about UltiMaker Factor 4 safety and compliance.
Safety Features: Red Stop Button for motion & heat sources immediate stop Open Door Sensor for motion and extrusion pausing.
Warranty Period: 12 months Limited Warranty
Compatibility
UltiMaker PPS Carbon Fiber
UltiMaker PPS CF is a carbon fiber reinforced polyphenylene sulfide (PPS) filament and the next level composite material for the UltiMaker Factor 4.
It has excellent performance while still being easy to print using HT print cores.
UltiMaker Nylon CF Slide
A breakthrough Nylon 612 CF copolymer designed for industrial applications where tribological performance is key.
This high-performance, PFAS-free filament delivers excellent wear resistance, temperature stability up to 180°C after annealing, and a robust Z tensile strength exceeding 40 MPa.
Ideal for replacing POM in complex, custom designs.
Innovation powered by material diversity
A wide range of high-performance and certified material properties opens up a huge range of new 3D printing applications on Factor 4.
Application and material-matching print cores
UltiMaker print cores feature a quick-swap design and EEPROM chip.
They are recognized by Cura and can be quickly changed without tools to meet the requirements of any print job, increasing your efficiency and decreasing downtime.
Factor 4 is compatible with all UltiMaker print cores: AA, BB, CC, DD, and HT.
UltiMaker Factor 4 works with 200+ materials including the following
PPS CF, ABS, Nylon, PC, Tough PLA, PLA, PETG, CPE, CPE+, TPU 95A, PP
