Makeblock
xTool P3 CO2 Laser Cutter (P0101000118)
Introduction
The Ultimate CO2 Laser Workhorse with Intelligent Automation.
Cutting King
The 80W CO2 laser delivers industrial power for cleaner, crisper wood cuts with far less charring than diode lasers.
From cutting and engraving crystal-clear acrylic to applying delicate patterns on glass, its unique wavelength masters the transparent materials that diode lasers cannot.
From thick 20mm wood and 25mm acrylic to fine fabrics, the P3 handles it all.
Two cameras work as one.
They automatically select the best camera for your material.
Our 16MP SkyView panoramic camera provides a precise, seamless preview of your large project while minimizing edge distortion.
For the finest details, the close-range detail camera achieves a microscopic 0.0079" precision.
Together, they ensure flawless alignment on everything from large signs to ultra-fine jewelry.
Go bigger and produce smarter.
With a work area 2.3X larger than the P2S, you can create high-value large-scale products or batch entire production runs to supercharge efficiency.
Even better, cut your material costs by processing full-sized sheets yourself instead of buying expensive, pre-cut pieces.
It’s a triple upgrade to your capability, output, and profit.
Forget the cost and hassle of manual riser base.
Our built-in AutoLift Base delivers flawless, automated focus every time.
It unlocks a massive 8.7" of vertical space, empowering you to master thick and tall objects with ease.

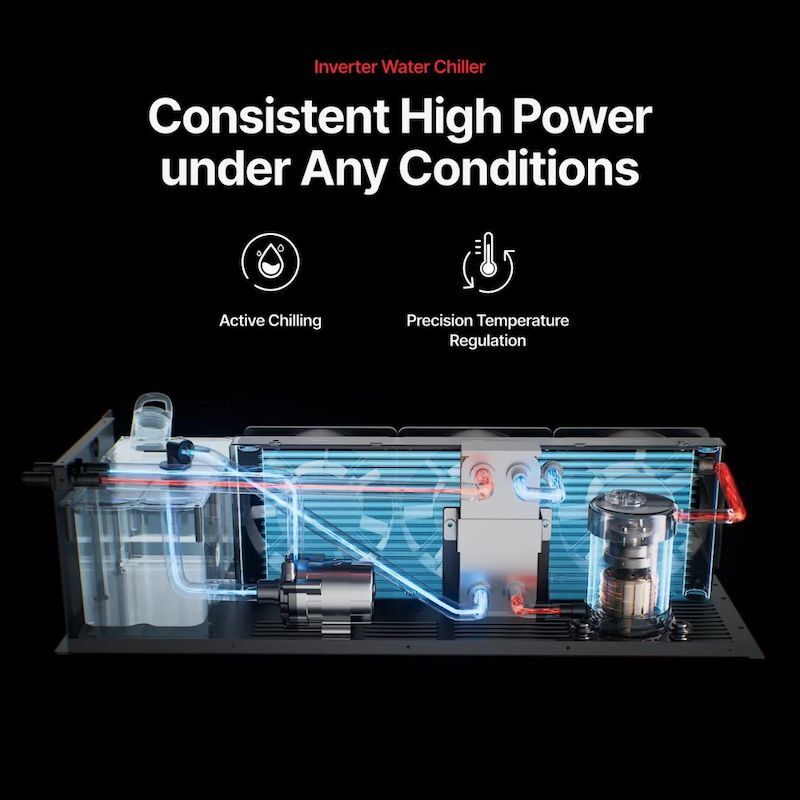

P3 features a true compressor-based inverter water chiller for active refrigeration and precision temperature regulation.
This ensures consistent power output during long jobs and significantly extends your machine's lifespan.
Highlights
4-Camera Vision: For pinpoint material positioning and complete safety monitoring.
Exclusive ACS™ Smart Workflow: Auto-Positioning, Autofocus, Auto LiDAR Ranging, and an Auto-Lifting Base.
Smart Accessories: Enables 3D previews (RA3) & full-scale previews (Conveyor).
36" × 18" Bed Size: Our largest workspace yet - 2.2x larger than the P2S.
80W Power & 1200mm/s Speed: Double the processing efficiency of the P2S.
Technical Specifications
| xTool P3 | xTool P2S |
| Product Dimensions | 1250 × 780 × 496 mm | 1000 × 639 × 268 mm |
| Product Weight | 105 kg | 45 kg |
| Max. Machine Input Power | 1400W | 700W |
| Power Adapter Input Voltage | 100V - 240V, AC 50 Hz | 100V - 120V, AC 50/60 Hz |
| Processing Mode | Laser Cutting
Laser Engraving |
Laser Cutting
Laser Engraving
|
| Supported Materials |
Laser Cuttable: Wood, Acrylic, Fabric, Leather
Laser Engravable: Metal, Glass, Bamboo, Ceramic
|
Laser Cuttable: Wood, Acrylic, Fabric, Leather
Laser Engravable: Metal, Glass, Bamboo, Ceramic
|
| Working Area | 915 x 458 mm | 600 x 305 mm |
| Max. Working Speed | 1200 mm/s, X-axis Acceleration 19600 mm/s² | 600 mm/s, X-axis Acceleration 6400 mm/s² |
| Max. Laser Cutting Capacity (Basswood) | 20 mm in ONE PASS | 18 mm in ONE PASS |
| Max. Laser Cutting Capacity (Acrylic) | 25 mm in ONE PASS | 20 mm in ONE PASS |
| Max. Processing Height | 220 mm |
With riser base: 215 mm
With tray: 64 mm
Without tray: 71 mm
|
| Max. Rotary Engraving Diameter | 0 - 200 mm |
With riser base: 0 - 180 mm
Without riser base: 3 - 50 mm
|
| Supported Software | xTool Studio | xTool Creative Space / Lightburn |
| Operating System | Windows / macOS | Android / iOS / iPad / Windows / macOS |
| Connection Method | USB / Wi-Fi | USB / Wi-Fi |
| Supported Files | SVG / DXF / JPG / JPEG / PNG / BMP / TIF | SVG / DXF / JPG / JPEG / PNG / BMP / TIF |
| Almake Compatibility | Yes | Yes |
| Easy Operation | Yes | Yes |
| ACS™ (Automated Creation System™) | Yes | N/A |
| Built-in Camera | 16 MP SkyView Panoramic Camera + Close-range Camera + Side Camera × 2 | 16 MP Panoramic Camera + Close-range Camera |
| Positioning Method | Dual-Camera Positioning | Dual-Camera Positioning |
| Focus Mode | Autofocus | Autofocus |
| Ranging System | LiDAR Ranging System | LiDAR Ranging System |
| Preview Method | Smart Camera Preview | Smart Camera Preview |
| Laser Spot Size |
M Focal Lens
0.15 × 0.18 mm (standard)
S Focal Lens
0.14 × 0.16 mm (optional)
L Focal Lens
0.18 × 0.20 mm (optional)
| 0.15 × 0.2 mm |
| Positioning Precision | 0.2 mm, Camera | 0.3 mm, Camera |
| Motion Accuracy | 0.01 mm | 0.015 mm |
| Safety Certification | Class 1 Laser Safety | Class 4 Laser Safety |
Inside the Box
xTool P3
Power Cable
USB Cable
Antifreeze
Funnel
Material Clamp
Masking Tape
Cardboard
Basswood 3mm
Smoke Exhaust Pipe
Safety Instructions
Quick Start Guide
SafetyPro™ IF2 2.0
Ribbed Plastic Anchors
Screw M3*10
Wall-mounting Fixture
Hex Key 2mm
Key
Double-endscrewdriver
Hex Key 1.5mm
Hex Key 3mm
Screw M3*6
Screw M3*5
Screw M4*10
Self-tappingscrew ST2.9*9.5
