xTool MetalFab Laser Welder / CNC Cutter
(800W: P0101000115)
(1200W: P1030708)
(CNC: P5010452)
(800W + CNC: P0101000115 + P5010452)
(1200W + CNC: P1030708 + P5010452)
Introduction
All-in-One Metal Workshop for Small Businesses & DIYers
Weld, cut, and clean with one device.
MetalFab meets small-batch needs in metalworking, repair, or crafting, saving space, labor, and costs.
Industrial-Grade Performance

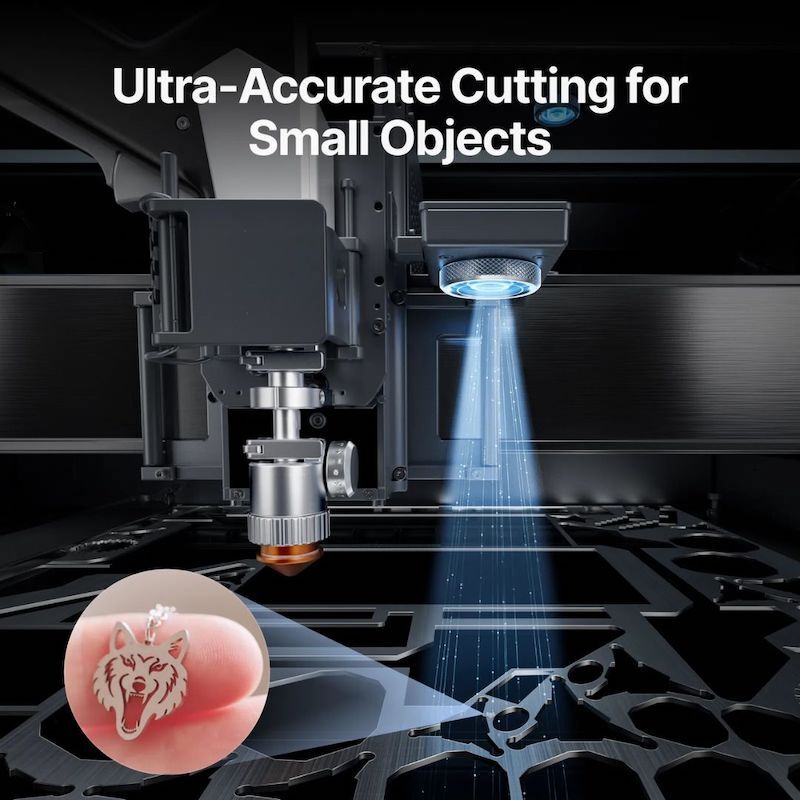

Deliver precise welds and cuts on stainless steel, carbon steel, brass, and aluminum with professional stability.
Exclusive Technology for Enhanced Efficiency

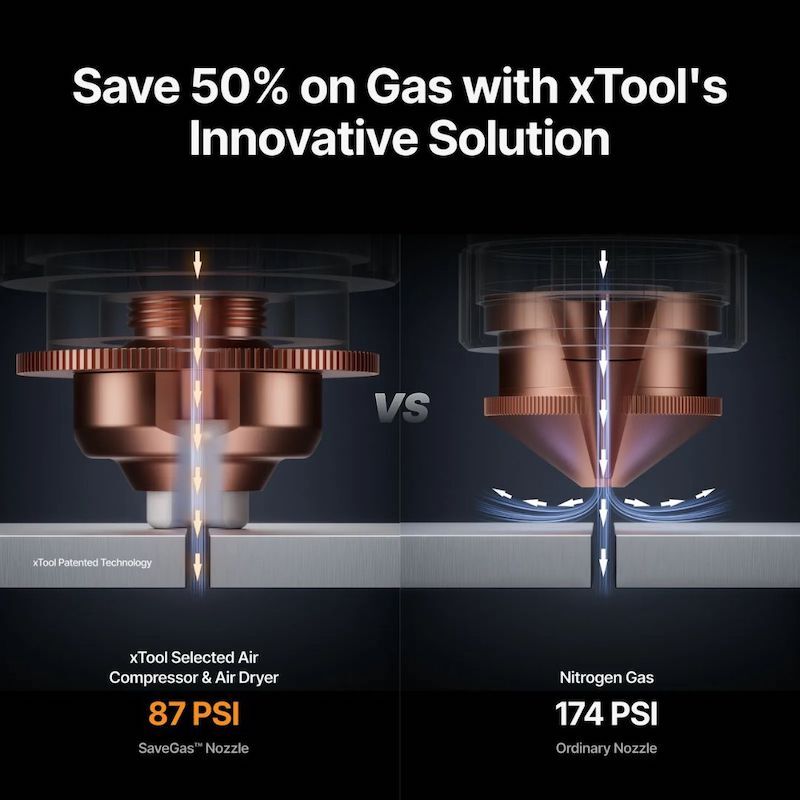

Smart dual cameras, VibeFreeCut™, FlexiTrack™, and SaveGas™ ensure flawless cuts, reducing costs and improving ROI.
Easy for Everyone – Low Learning Curve

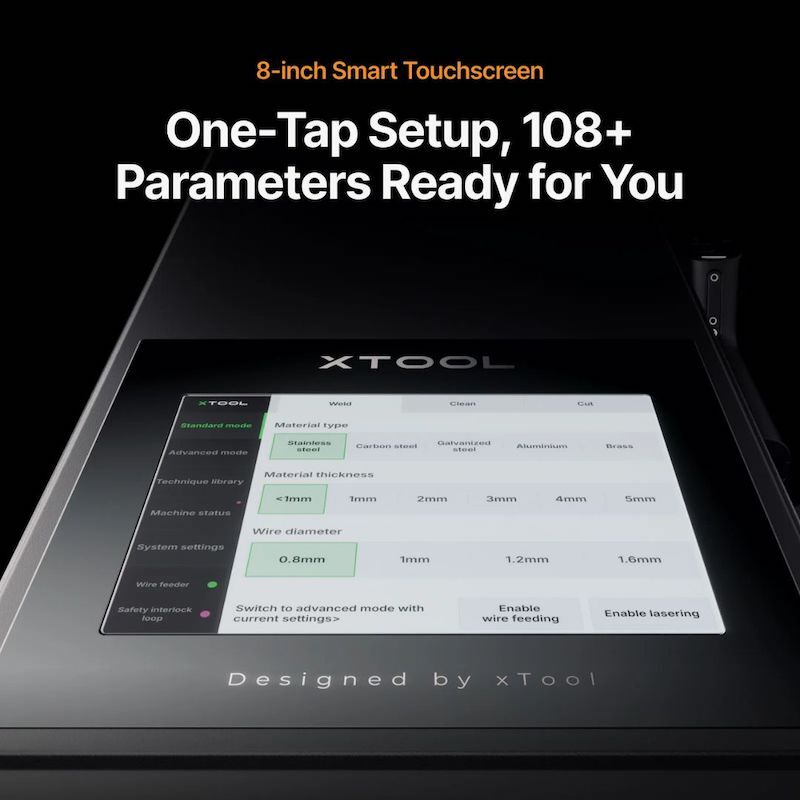

One-click, built-in 108+ parameters make it simple to create in minutes, without the need for specialized training.
Quality and Safety Guaranteed
10,000+ hours laser lifespan, 24/7 stable output, and 10 safety features for reliable operation in tough conditions (-10°C to 40°C)
Technical Specifications
Laser Welder (Both 800W & 1200W)
Laser Type: Fiber Laser
Processing Mode: Welding / Cutting / Rust Removal & Cleaning
Welding Mode: Seam Welding / Tack Welding / Pulse Welding
Wavelengths: 1080 ± 10 nm
Photoelectric Conversion Rate: 36%
Cooling System: Air-cooling
Safety Certification: Class 4 Laser Safety
Input Voltage: 200 - 240V, AC 50/60Hz
Storage Temperature: -10 ℃ - 60 ℃
Operation Temperature: -10 ℃ - 40 °C
Processing Thickness: 0.2 - 4 mm
Laser Welder 800W / 1200W
Machine Dimensions: 632 × 304 × 472 mm / 728 × 327 × 512 mm
Machine Weight: 35 kg / 38.2 kg
Integrated Wire Feeder: Yes / N/A (Free Wire Feeder Machine Included)
Cable Length: 3.5 m / 5 m
Rated Power: 3000W / 4200W
Full-load Current: Max 15A / Max 21A
CNC Cutter
Machine Dimensions: 1175 x 1157 x 1230 mm
Machine Weight: 158 kg
Processing Mode: CNC Cutting / CNC Rust Removal & Cleaning / CNC Engraving
Working Area: 610 × 610 mm
Pass-Through Size: 610 × ∞ mm
Max. Working Speed: 400 mm / s
Motion Accuracy: ± 0.1 mm
X / Y Axis Max Speed: 0.1 g
X-Axis Travel: 610 mm
Y-Axis Travel: 610 mm
Z-Axis Travel: 90 mm
Exhaust Fan Capacity: 620 m 2800RPM (± 10%)
Safety Certification: Class 4 Laser Safety
Rated Power: 250W
Input Voltage: 100 - 240V, AC 50/60Hz
Full-load Current: Max 2.5A
Storage Temperature: -10 °C - 60°C
Operation Temperature: 0 °C - 40 °C
Recommended Gases
Welding: 99.99% Nitrogen or 99.99% Argon
Cutting / Cleaning: 99.99% Nitrogen or 99.99% Argon or Air
Supported Materials
Stainless Steel: 304 / 316 / 410 / 430
Aluminum / Aluminum Alloy: 1060 / 5083 / 6061 / 6063 / 7075
Carbon Steel: A36 / Q235 / 1095 / #45
Titanium / Titanium Alloy: Gr.5/Ti-15V-3Cr-3Sn-3Al
Brass: C26000 / C28000 / C36000
Galvanized Sheet: DX51D, Magnesium Alloy, Nickel Alloy, Zinc Alloy, and more
Cleaning Width: Max. 45 mm Rust/Paint Cleaning; Max. 10 mm Post-weld Cleaning
Inside the Box
xTool MetalFab Laser Welder
Wire Feeder x 1
Wire Feeder Cable x 1
Wire Feeding Tube x 1
Stainless Steel Wire 1 mm x 1
Drive Roll 0.8 / 1 mm x 2
Drive Roll 1.2 / 1.6 mm x 2
Wire Feeding Nozzle 1.2 / 1.6 mm x 1
Cutting Tip x 1
Welding Nozzle (for autogenous welding) x 1
Cleaning Nozzle x 1
Lens Protector (spare part) x 5
1080 nm Laser Safety Goggles x 1
Heat-resistant Gloves x 2
Tube (external diameter: 10 nm) x 1
Power Cable x 1
Workpiece Sensing Cable x 1
304 Stainless Steel Sheet (thickness: 2 mm) x 4
Components for Welding Head Cradle x 1
Key x 1
USB Flash Drive x 1
Hex Key 2 mm x 1
Hex Key 2.5 mm x 1
Round Tip Cotton Swab x 1
Pointed Tip Cotton Swab x 1
Safety Instructions x 1
Quick Start Guide x 1
xTool MetalFab CNC Cutter
Cleaning Nozzle x 1
Telescopic Cutting Nozzle x 1
Cutting Tip x 1
Ceramic Ring x 1
Power Cable x 1
Communication Cable x 1
Slat x 5
Z-shaped Wrench x 1
External Antenna x 1
Cable Fixing Block x 1
Hook x 1
Laser Alignment Card Red Stamp Pad x 1
Level x 1
Computer Connection Cable x 1
Hex Key 3 mm x 1
Hex Key 4 mm x 1
Wrench x 1
Storage Box x 1
Screw M4*30 x 15
Screw M4*10 x 5
Screw M6*12 x 10
Camera Calibration Board x 1
Metal Sheets x 1
Pipe Clamp x 1
Baseplate x 1
Exhaust Fan x 1
Smoke Exhaust Pipe x 1
Safety Instructions x 1
Quick Start Guide x 1
