2026 MakeX
Starter Signal Rise
Arena and Frame (P0201000172)
Introduction
This kit includes the map, frame, and items required to build the arena for 2026 MakeX Starter Signal Rise.
It can be used for offline training and competitions.
Technical Specifications
Package Size: 124 x 35.8 x 18 cm
Gross Weight: 11.98 kg
Storage Temperature: 0℃ ~ 35℃
External Size of Frame: 2365 x 2350 mm
Internal Size of Frame: 2335 x 2335 mm

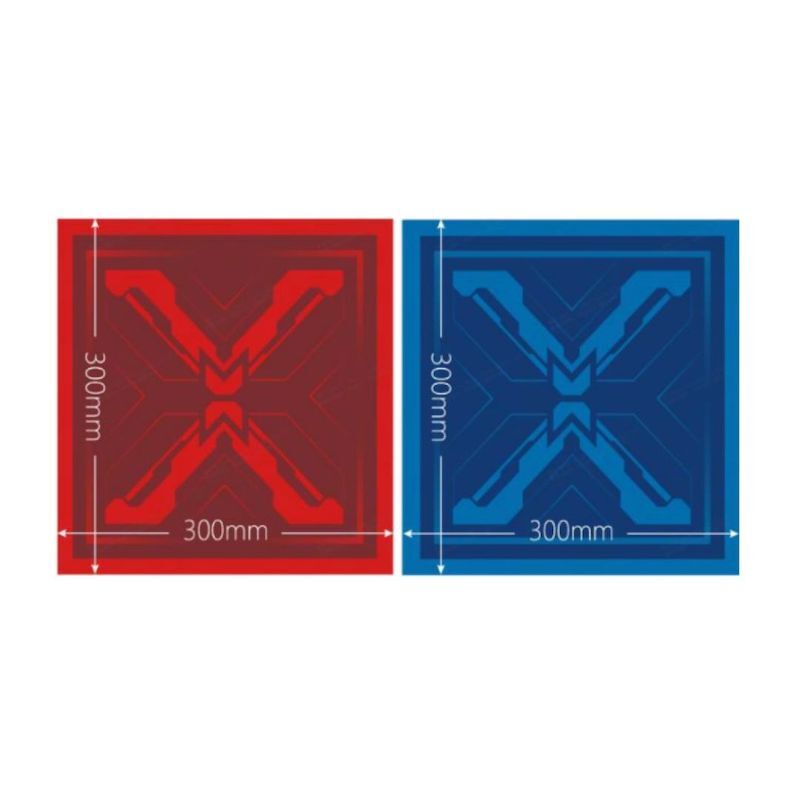

Starting Area
Side Length: 300 mm

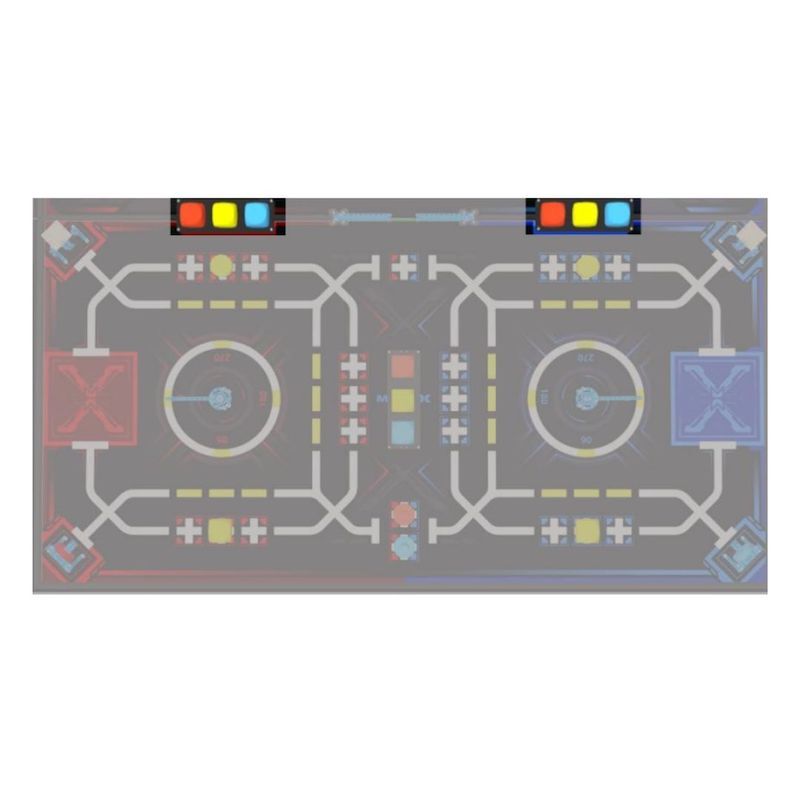

Resource Storage Area
Resource Storage Area Dimensions: 304 x 95 mm
Resource Storage Point Dimensions: 95 x 95 mm

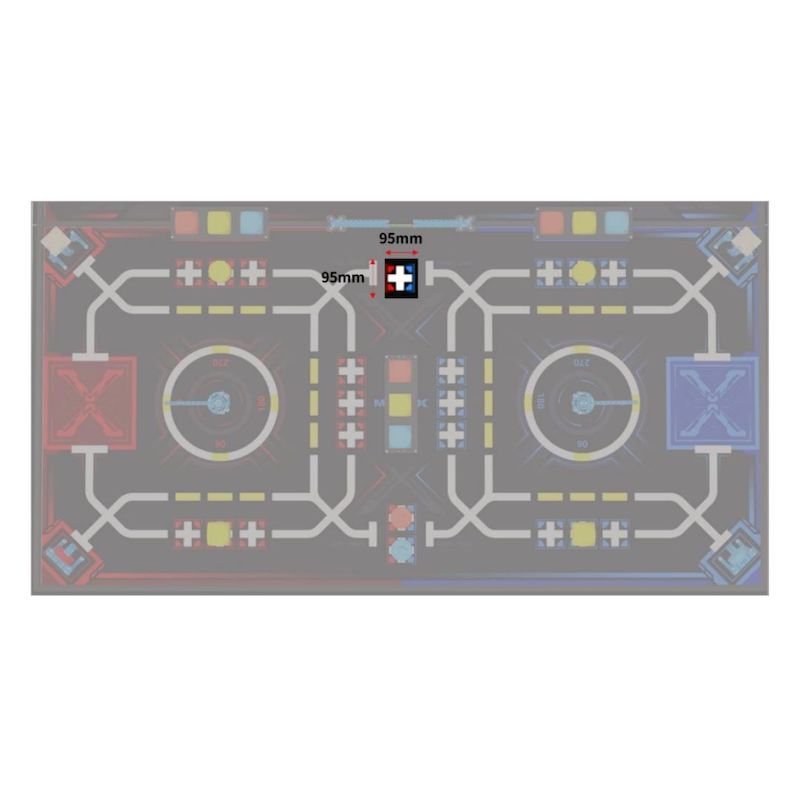

Resource Exchange Area
Size: 95 x 95 mm

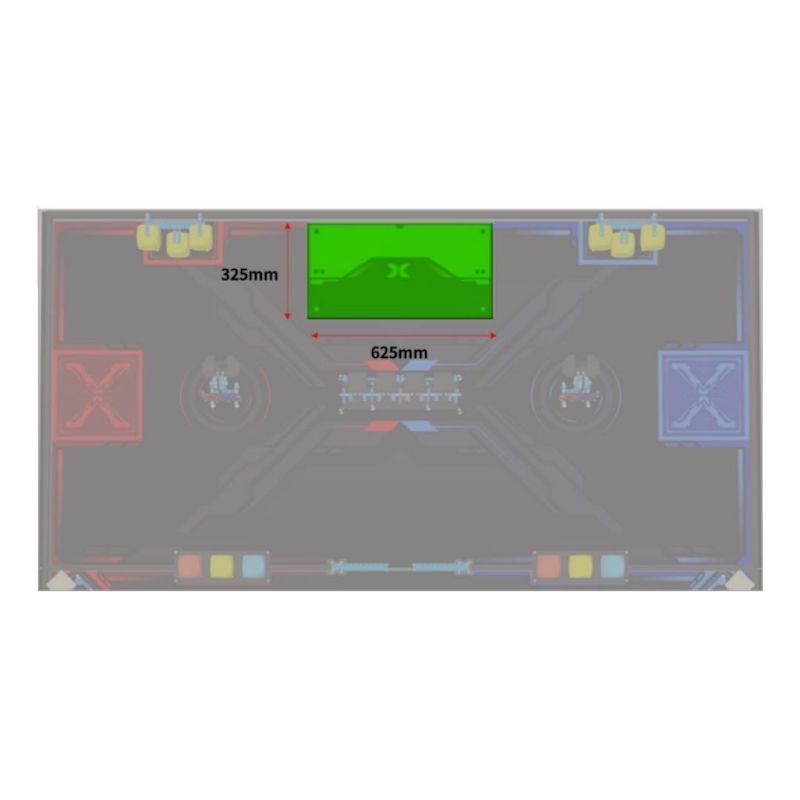

Manual Loading Area
Size (Length x Width): 625 x 325 mm
Data Cube
Size: 70 mm (± 3 mm)
Resource Cylinder
Diameter: 70 mm
Height: 200 mm
Energy Ring
Outer Diameter: 70 mm (± 2 mm)
Inner Diameter: 40 mm

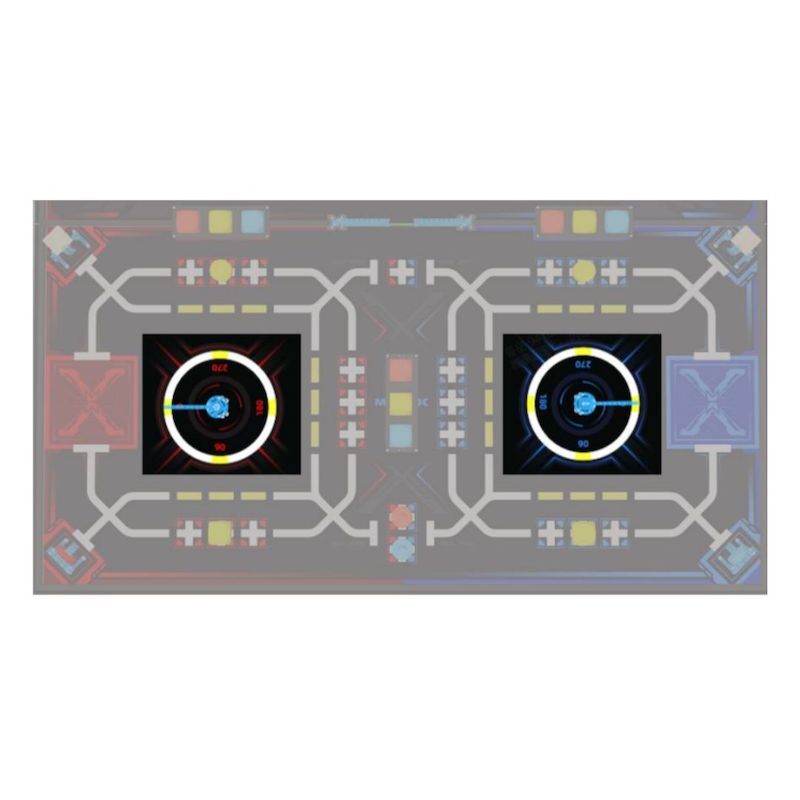

Central Pointer Device
Base Dimensions: 72 mm Diameter
Height: 68 mm
Pointer Length from Rotational Center to Opposite End: 174 mm
Single-hole Beam Total Length: 188 mm
Resource Exchanger
Size (Length x Width x Height): 312 x 104 x 40 mm
Ring-Hanging Device
Size (Length x Width x Height): 110 x 104 x 135 mm
April Tag Display Stand
Size (Length x Width x Height): 110 x 112.5 x 135 mm
Signal Tower
Base Diameter: 70 mm
Pillar Body Diameter: 29 mm
Height: 100 mm
Pulley Device
Size (Length x Width x Height): 200 x 53.5 x 70 mm
Flipping Platform
Size (Length x Width x Height): 420 x 135 x 186 mm
X Tower
Size (Length x Width x Height): 140 x 130 x 240 mm
Supply Device
Size (Length x Width x Height): 180 x 100.5 x 265 mm
Inside the Box
(Part List x Qty.)
Beam - 076 x 20
Beam - 092 x 2
Beam - 188 x 2
Slide Beam - 048 x 8
Slide Beam - 080 x 2
Slide Beam - 096 x 5
Slide Beam - 112 x 4
Slide Beam - 128 x 4
Slide Beam - 160 x 4
Slide Beam - 176 x 5
Slide Beam - 256 x 4
Square Beam 2424 - 184 x 2
Board A01 x 3
Board A02 x 3
Board B01 x 2
Board C01 x 2
Board C02 x 2
Board D01 x 1
Board E01 x 2
L-shaped Board x 4
X-shaped Board B x 4
Red Board x 2
Blue Board x 2
Plate - 056 x 2
Plate - 088 x 2
Plate - 184 x 2
Round Plate x 2
Connection Block x 4
T-shaped Plate x 2
Rudder Bracket x 2
U-shaped Bracket x 2
Flat Beam Bracket x 2
Servo Bracket x 4
Fixing Plate x 4
Slider x 4
Flat Beam 1160 x 8
Flat Beam 980 x 2
I-shaped Lock x 2
T-shaped Lock x 2
L-shaped Lock x 4
Flat Beam Cover x 2
Magnetic Stud M4 x 70
Magnetic Disc x 70
Shaft Connector x 8
Round Magnetic Plate x 70
Hex Nut M4 x 100
Hex Lock Nut M4 x 50
Screw M4*8 x 150
Screw M4*10 x 30
Screw M4*14 x 50
Screw M4*22 x 15
Screw M4*30 x 15
Headless Screw M3*5 x 30
Roller x 16
Shaft Collar x 12
Rubber-coated Bearing x 8
Flange Bearing x 12
Aluminum Sleeve 4*6*4 x 6
Rolling Wheel x 2
Hex Stud M4*32 x 12
L-shaped Bracket x 2
D Shaft 4*56 x 4
Shaft 4*88 x 2
Shaft 4*400 x 1
Plastic Rivet - R4120 x 10
Plastic Pillar M4*7*10 x 20
Plastic Pillar M4*7*14 x 16
Plastic Ring M4*8*1 x 10
Timing Pulley Plate x 4
Timing Pulley x 2
Belt x 2
Hex Key 1.5 mm x 1
Screwdriver Hex 2.5 mm & Cross x 1
Wrench x 1
MAKE Sticker x 1
Label Card x 1
Red Cube 70 mm x 3
Blue Cube 70 mm x 3
Yellow Cube 70 mm x 12
Red Ring 40*70*20 x 3
Blue Ring 40*70*20 x 3
Red Cylinder with Base x 1
Blue Cylinder with Base x 1
Yellow Cylinder x 2
Double-sided Fabric Tape x 1
Map x 1
