2026 MakeX
Challenge Storm Breaker
Arena and Frame (P0201000188)
Introduction
This kit includes the map, frame, and items required to build the arena for 2026 MakeX Challenge Storm Breaker.
It can be used for offline training and competitions.
Technical Specifications
Package Size
856 x 376 x 275 mm (S01)
1078 x 733 x 224 mm (S02)
1053 x 583 x 305 mm (S03)
311 x 304 x 213 mm (S04)
1078 x 733 x 269 mm (S05)
1218 x 733 x 174 mm (S06)
1600 x 100 x 100 mm (map)
Gross Weight: 171.7 kg
Starting Area
Size: 500 x 500 mm

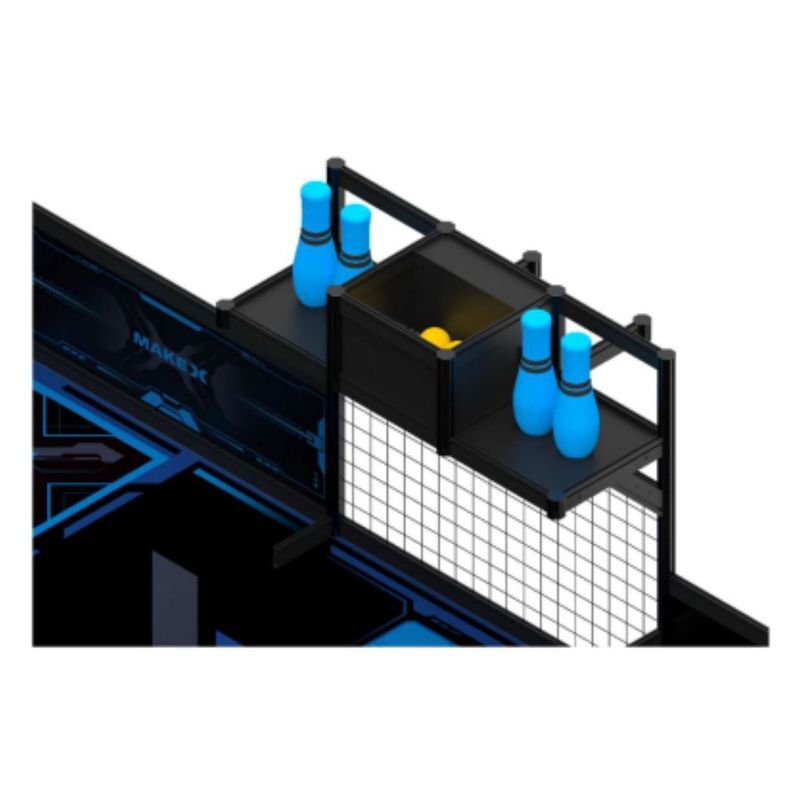

Own Resource Area
Size: 985 x 318 x 745 mm

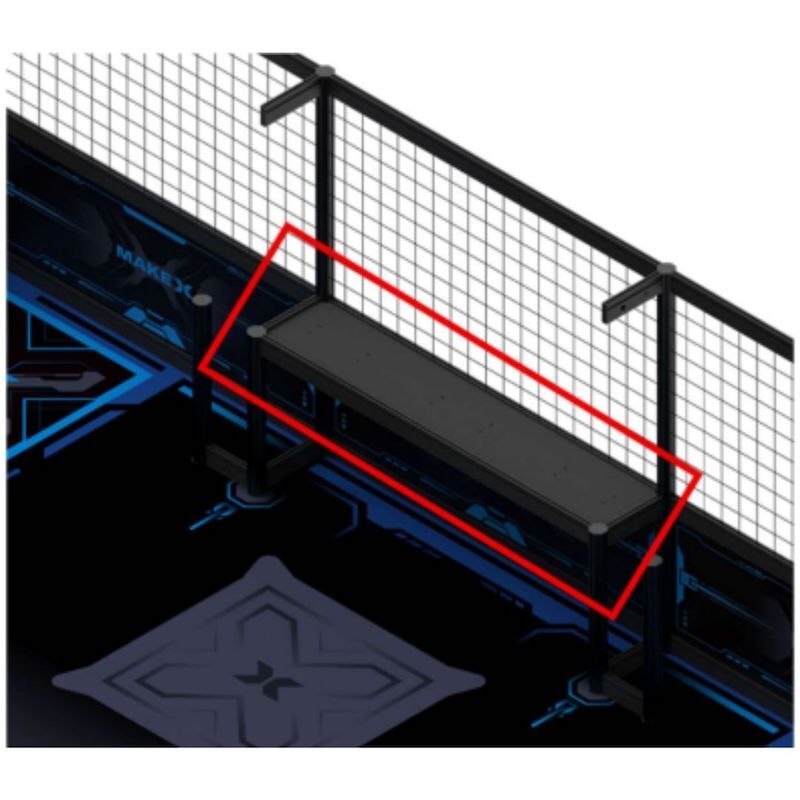

Pin Placement Area
Size: 995 x 195 x 388 mm

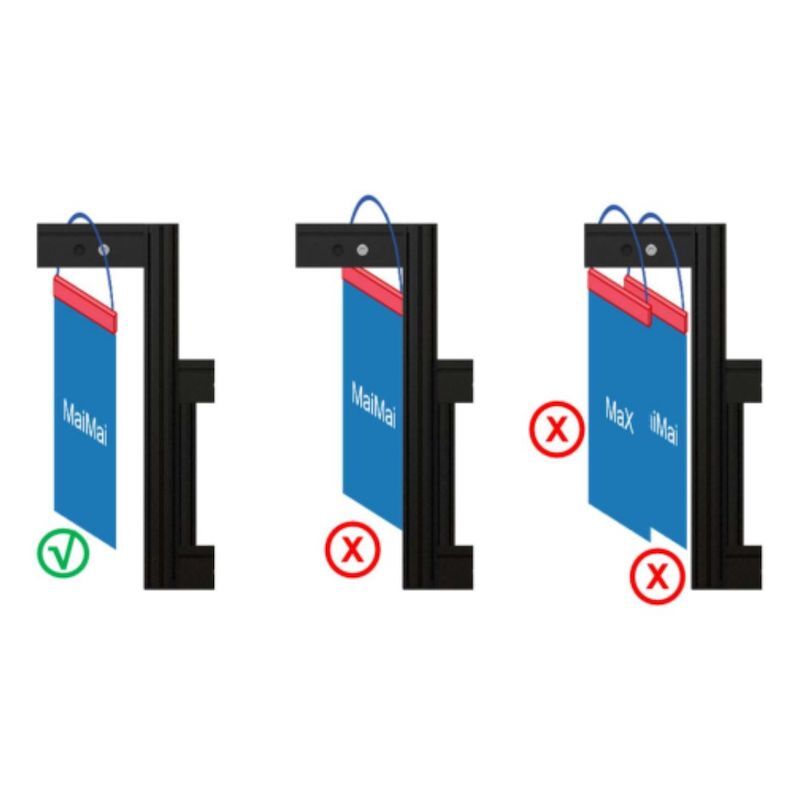

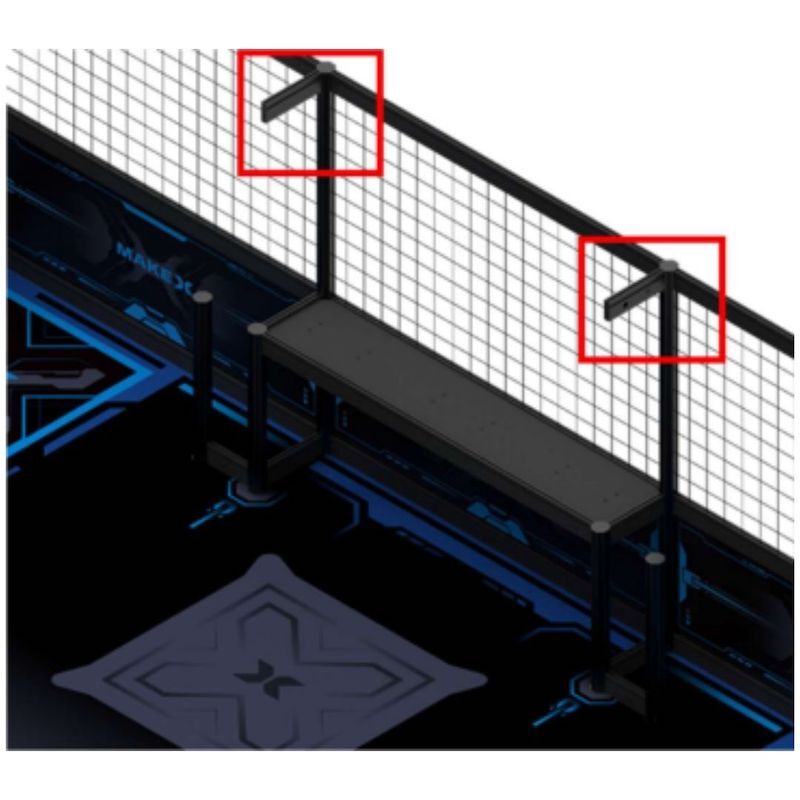

Flag Hanging Area
Size: 120 x 15 x 961 mm

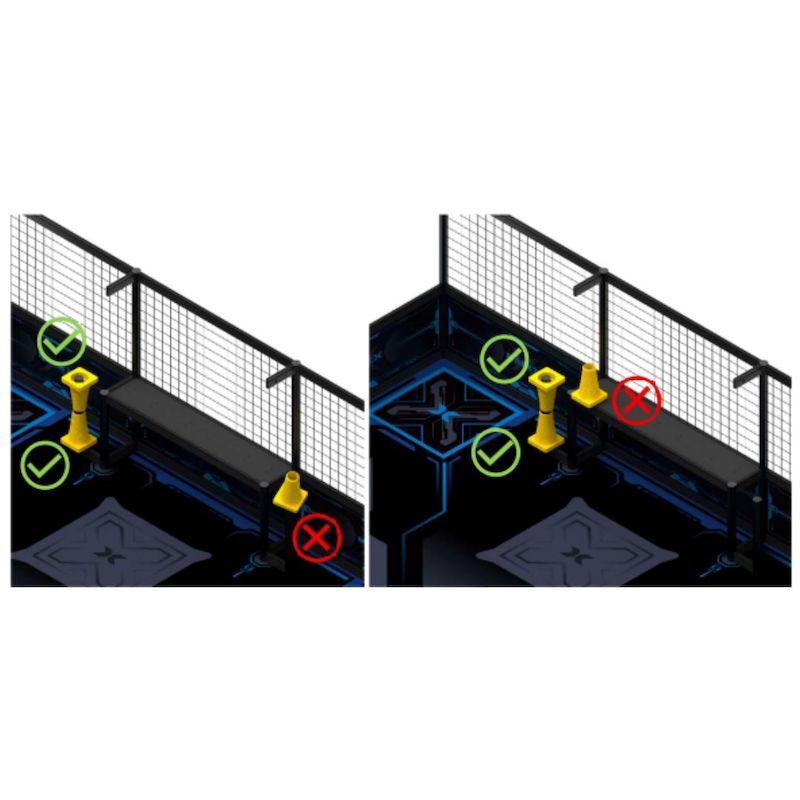

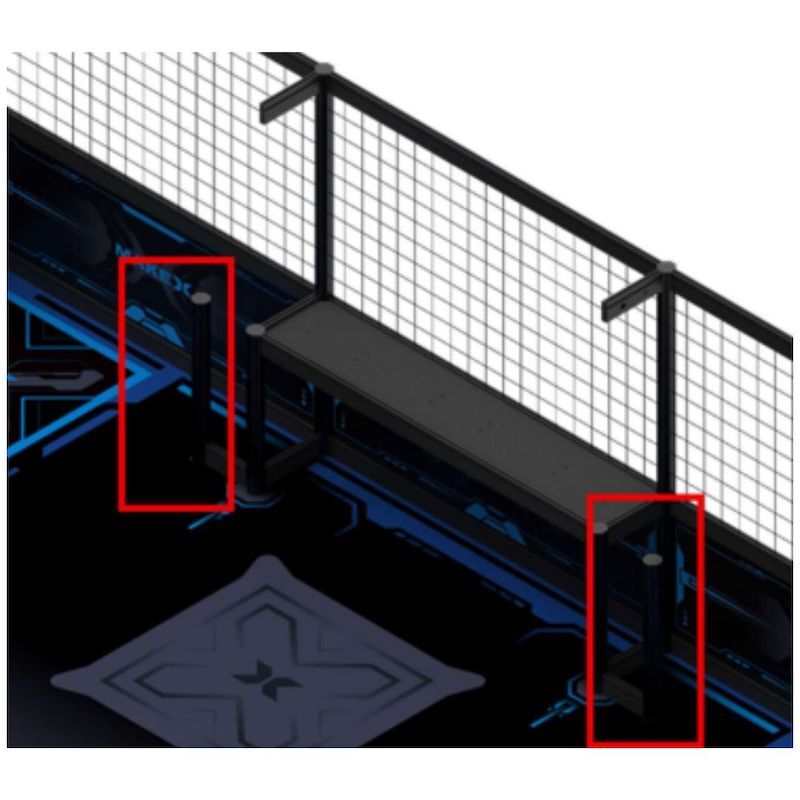

Cone Hanging Area
Size: 40 x 405 mm

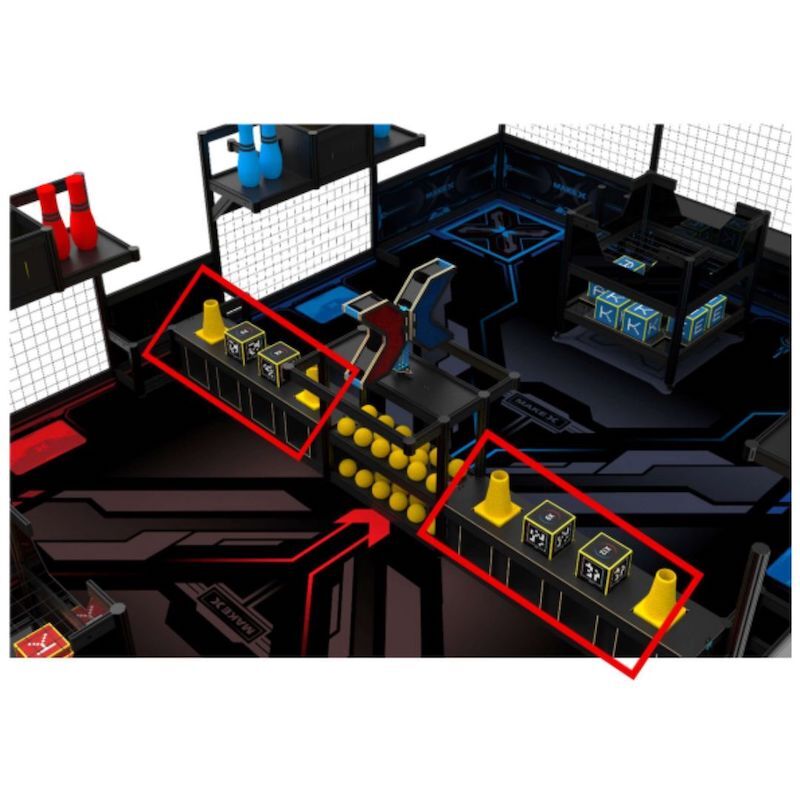

Strategy Area
Size: 960 x 215 x 259 mm

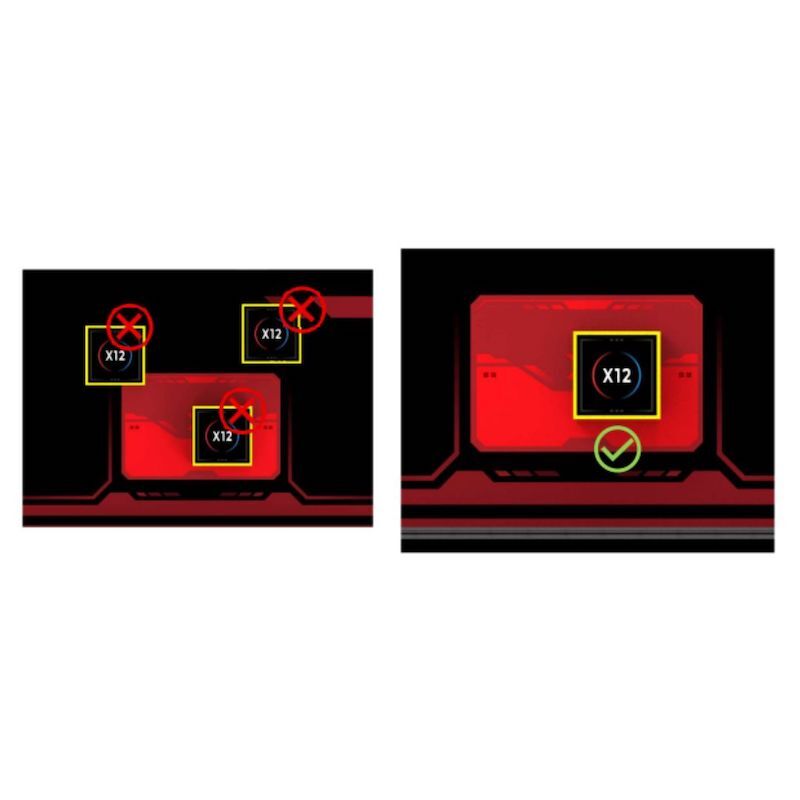

Bonus Cube Exchange Area
Size: 318 x 214 mm

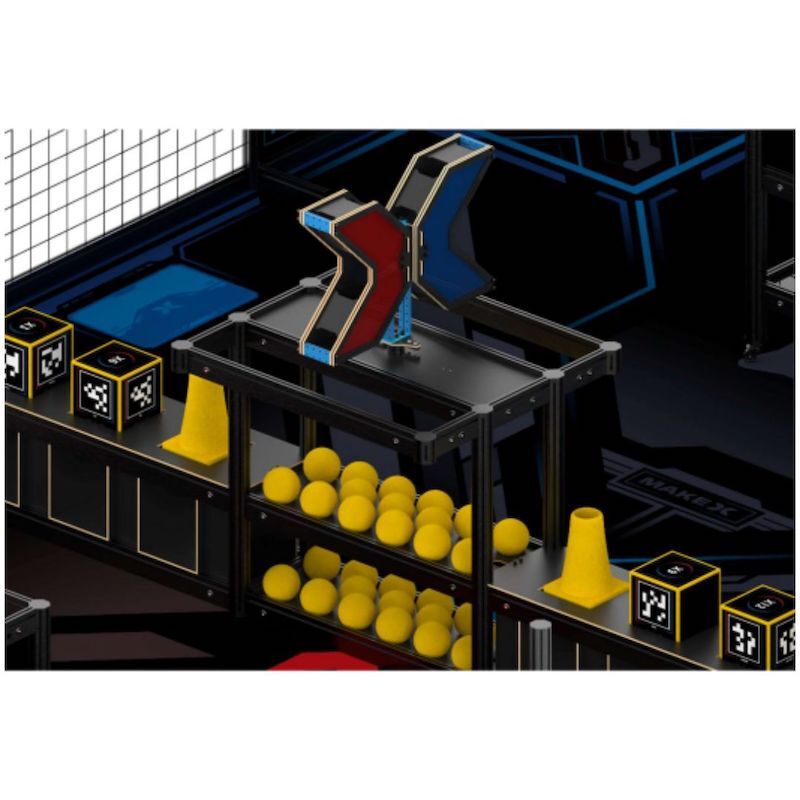

Central Resource Area
Size: 455 x 86 x 292 mm (Excluding the mounting bracket)

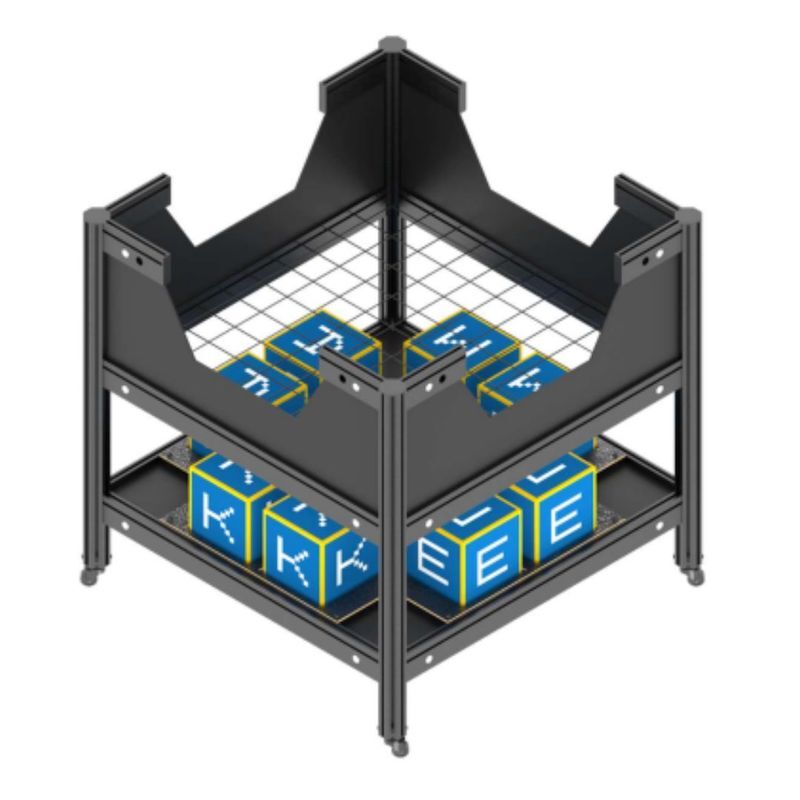

Mobile Fortress
Size: 640 x 640 x 646 mm

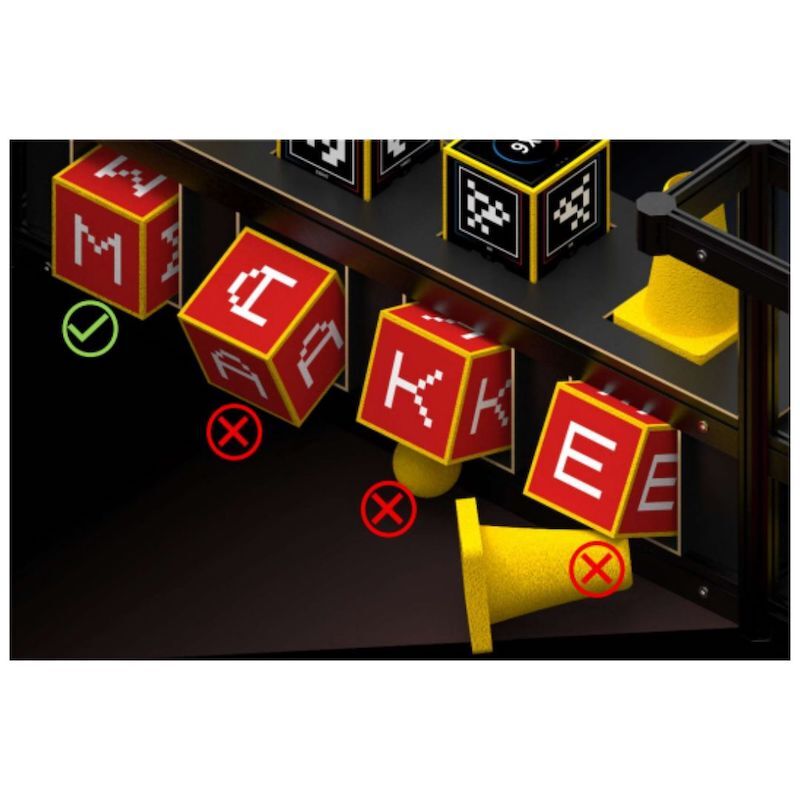

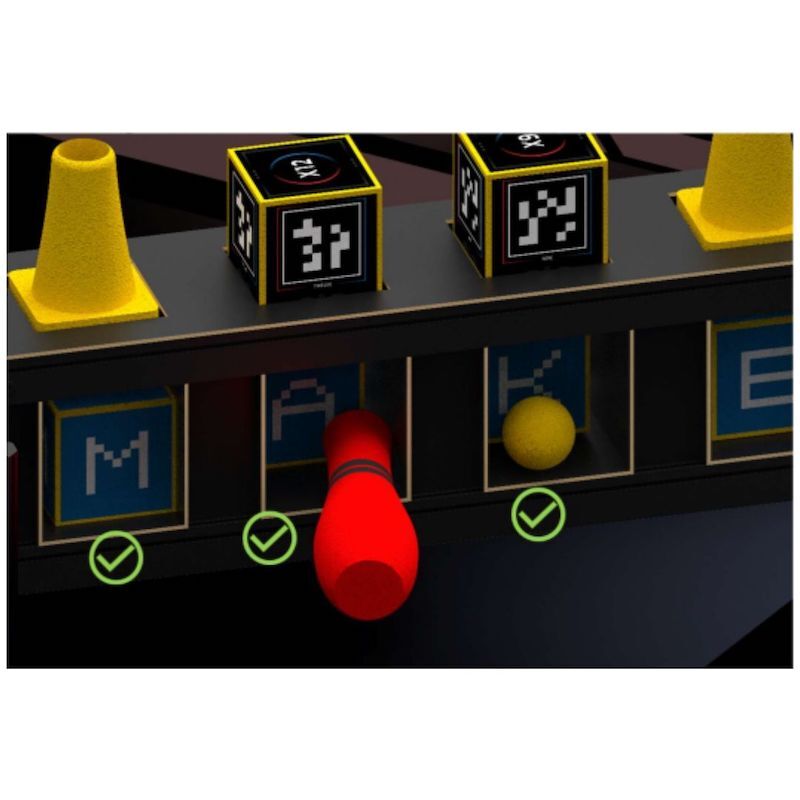

Letter Cube
Size: 120 x 120 x 120 mm, with a cross-shaped hole on one side
Pins
Diameter: 70 mm
Maximum Diameter: 100 mm
Height: 290 mm
Bonus Cube
Size: 120 x 120 x 120 mm, with a cross-shaped hole on one side
Cone
Size: 120 x 120 mm
Height: 170 mm
Ball
Size: 70 mm
Inside the Box
(Part List x Qty.)
Flat Beam 120 x 24
Flat Beam 160 x 42
Flat Beam 220 x 8
Flat Beam 293 x 60
Flat Beam 560 x 28
Flat Beam 960 x 44
Beveled Flat Beam x 8
Flat Beam Lock x 388
Left Flat Beam Lock x 8
Right Flat Beam Lock x 8
Octagonal Pillar 45 x 20
Octagonal Pillar 250 x 24
Octagonal Pillar 400 x 8
Octagonal Pillar 600 x 12
Octagonal Pillar 960 x 16
Octagonal Pillar Cover x 152
Threaded Octagonal Pillar Cover x 8
Flat Beam Cover x 24
Board A1 x 2
Board B1 x 12
Board B2 x 4
Board B3 x 4
Board B4 x 4
Board B5 x 4
Board C1 x 8
Board D1 x 2
Board D2 x 4
Board D3 x 16
Board D4 x 20
Board D5 x 8
Board E1 x 8
Board F1 x 8
Board F2 x 2
Board G x 2
Board G1 x 2
Board H1 x 12
Red Acrylic Board I1 x 1
Blue Acrylic Board J1 x 1
Board K1 x 1
Board K2 x 1
Board K3 x 2
Board K4 x 4
Board K5 x 4
Board L1 x 2
Board M1 x 5
Board M2 x 5
Metal Net 980*525 x 10
Metal Net 596*596 x 2
Slide Beam 016 x 1
Slide Beam 064 x 6
Slide Beam 224 x 2
Plate A x 2
Plate B x 1
Plate C x 2
Base A x 4
Base B x 4
Screw M4*10 x 20
Screw M4*16 x 10
Screw M4*22 x 5
Screw M4*25 x 45
Pre-assembled Screw M4*10 x 5
Pre-assembled Screw M4*14 x 20
Pre-assembled Screw M4*16 x 45
Hex Locknut M4 x 70
Plastic Ring 4*7*2 x 30
Plastic Washer 4*7*10 x 35
Flange Bearing x 2
Plastic Wheel x 8
Turntable Bearing x 1
Perforated Magnet x 4
Hex Allen Key T30 x 3
Screwdriver Hex 2.5 mm & Cross x 1
Screwdriver 3 mm x 2
Wrench 5 mm & 7 mm x 2
Double-sided Fabric Tape x 1
Transparent Tape x 1
3M Double-sided Nano Tape x 1
Yellow Ball x 100
Yellow Cube x 20
Yellow Cone x 4
Bottle-Red & Black x 8
Bottle-Blue & Black x 8
Map x 1
Cube Sticker A x 12
Cube Sticker B x 6
Cube Sticker C x 2
Position Card x 1
