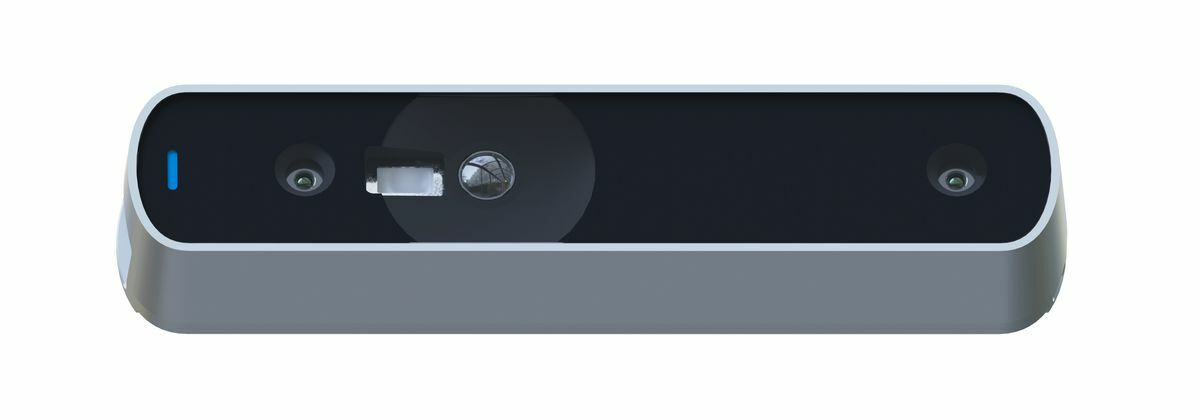

Occipital Structure Core 3D Scanning Bundle

Structure core (Color 85°) with USB-C to USB-A adapter & USB-A to USB-C cable
Optional upgrade services for onsite installation & training and onsite warranty support service are available. Please contact DTSL at 31608443 for details.

HK$4,360.00

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Description

Additional details

Shipping & Payment

Product Introduction

- Structure Core (Color 85°) with USB-C to USB-A Adapter & USB-A to USB-C Cable
- Tripod (and Tripod Mount)
- Skanect Pro (Professional 3D Scanning Software)
- 90 days carry-in limited parts & labour warranty
- Free email & phone support

Specifications

Dimensions
Weight	52.5g (enclosed)	26.5g (bare module)
Depth Processing	On-device using NU3000 ASIC
Depth Min/Max Z Distance	0.3-5m. Up to 10m (Depending on scene & lighting conditions.)
Depth Precision	± 0.29% (Plane-fit RMS at 1m.)
Depth Resolution & Frame Rate	1280 x 960 @ 54 FPS 1280 x 800 @ 60 FPS (Vertical Crop)
Depth FOV (H x V x D)	59° x 46° x 70°
Visible Resolution & Frame Rate	640 x 480 @ 100 FPS Both ultra-wide vision camera and color camera
Visible FOV (Diagonal)	160° ultra-wide vision monochrome camera or 85° color camera
IMU	Bosch BMI055 6-Axis (Gyro and Accelerometer), up to 1000 Hz Up to 2000Hz if streaming only Gyro or Accelerometer
Projector	Laser projector module (infrared, Class 1 rating for eye safety)
Use Environment	Indoor / Outdoor#
Power	2.0W (typical active), 3.1W (typical maximum)
Connectivity	USB 3 (Type-C), USB 2.0 operation supported
Operating Temperature (Ambient)*	0° to 35° C (32° to 95° F) (ambient, open air)*
Platforms
# For outdoor use, integrators must protect Structure Core against dust and water ingress. * Higher operating temperatures may be achievable, but have not been tested yet outside the stated range.

Videos

Skanect Pro - Features

Fast	Easy to Use	Ultra-Low Cost
Unlike existing technologies, Skanect can acquire dense 3D information about a scene at up to 30 frames per second. Just move around your Structure Sensor, Structure Core, Kinect or Xtion to capture a full set of viewpoints, and you will get a 3D mesh in real time.	Skanect makes it easy to 3D scan different kind of scenes by providing a set of predefined scenarios, suitable for most use cases. You can then share your models online in a few clicks - there's no need to be a trained professional to start 3D scanning!	Skanect leverages consumer-grade 3D cameras like the Structure Sensor, Structure Core, Microsoft Kinect and Asus Xtion, limiting the hardware cost to a fraction of previous 3D scanning solutions. For a personal and hobbyist use, you can even download a free version of Skanect!
