DFRobot micro:IoT-micro:bit IoT Expansion Board MBT0012

DFRobot micro:IoT-micro:bit IoT Expansion Board MBT0012

Without complicated background knowledge, you can build you IoT applications in few steps


HK$358.00
HK$348.00
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Additional details
Shipping & Payment



Introduction

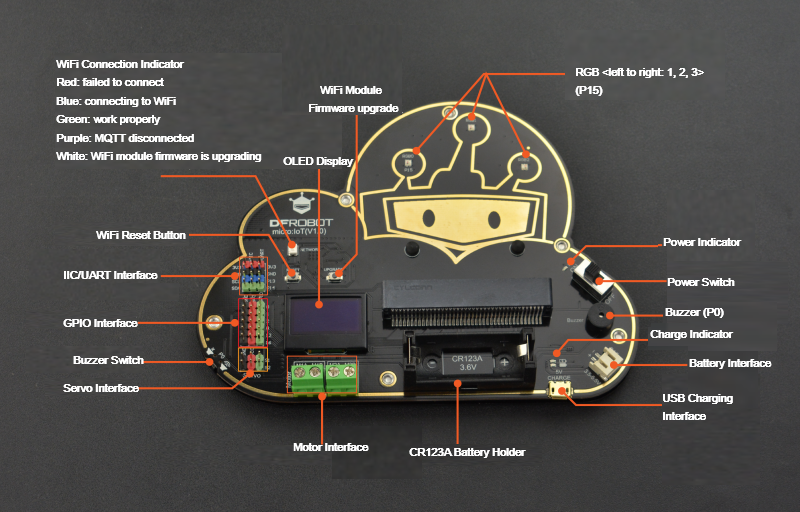

This micro: IoT board (MBT0012) is pretty cute and delicate, on which we integrated Wi-Fi, OLED, 2-way motor drive, 6-way IO port, 2-way IIC, 1-way serial port, 1-way buzzer, 3-way RGB, 2-way servo, Li-ion battery holder, charging circuit, emergency power interface etc. So many resources for you to programme! Even without complicated background knowledge, you can build you IoT applications in few steps!



 Specifications

Power Supply:
Li-ion battery or External power
STM8S IIC Address:
0×01
Battery Type:
CR123A 3.6V Rechargeable Li-ion Battery
Dimension:
148×112mm/5.83×4.41”
Digital Output Voltage:
0V/3.3V
Analog Input Voltage:
0~3.3V DC
Standard Gravity Pins
Mount Hole:
M3 Screw hole
Micro:bit Pins:

P0 P1 P2 P8 P12 P16

2-way Servo Pins

On-board 3-way RGB LED

On-board buzzer and Switch
