2024 MakeX Challenge 升級套件

2024 MakeX Challenge 升級套件 (P1090057) 適合已擁有 2022 MakeX Challenge 教育競賽套件的用戶，兩者共同構成 2024 MakeX Challenge 教育競賽套件。

HK$6,980.00

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

商品描述

了解更多

送貨及付款方式

2024 MakeX Challenge 升級套件 (P1090057)

產品介紹

2024 MakeX Challenge 升級套件適合已擁有 2022 MakeX Challenge 教育競賽套件的用戶，兩者共同構成 2024 MakeX Challenge 教育競賽套件

它適合已經擁有 2022 年 MakeX 挑戰賽教育競賽套件及準備參加 2024 年 MakeX 機械人挑戰賽的參賽者

技術規格

包裝方法：合裝

包裝尺寸 (高/寬/長)：

54.3*15*14 cm // 21.38*5.91*5.51 inch

產品淨重：7.64 kg

總重量：8.3 kg

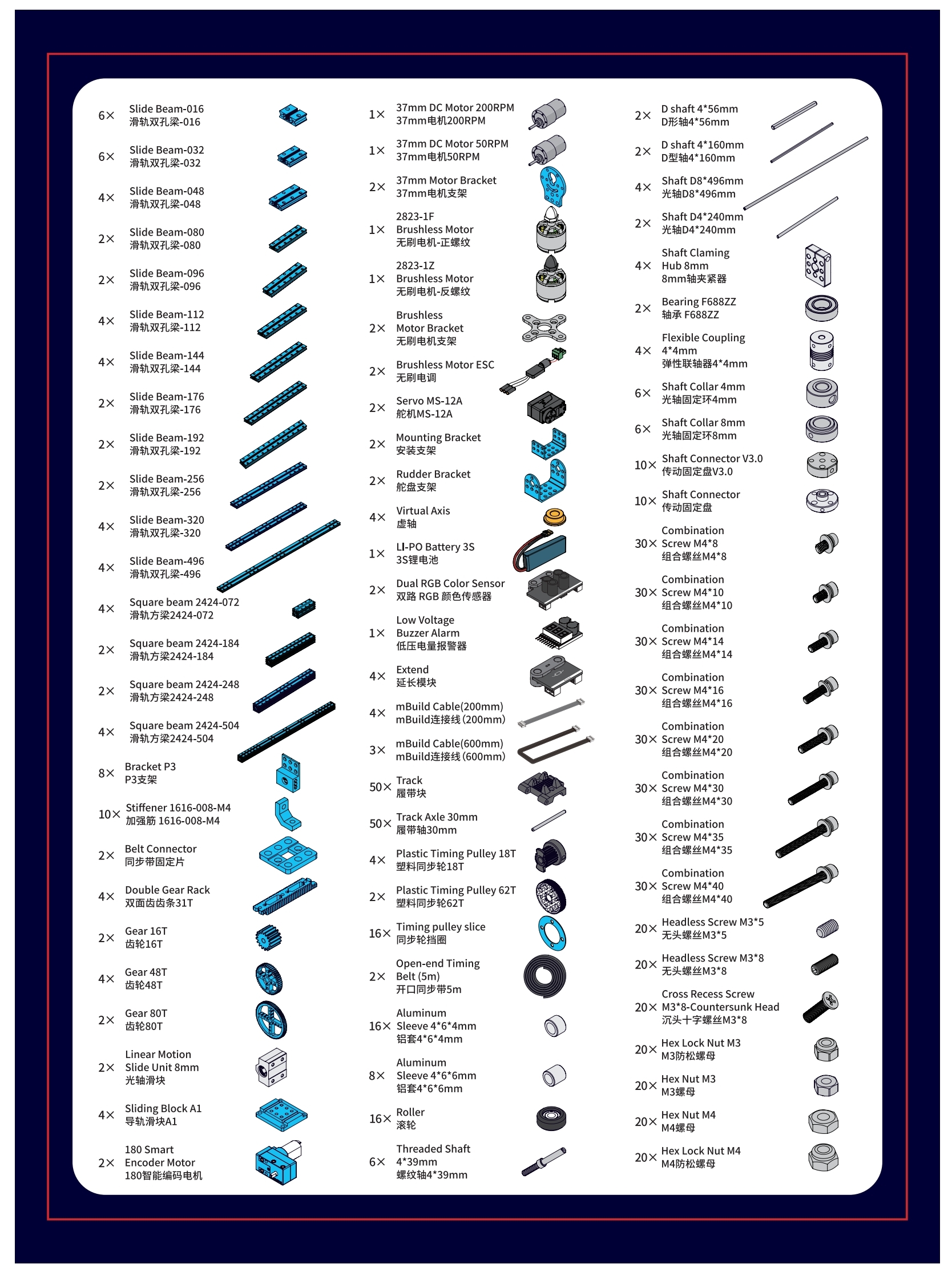

包含組件

零件清單 (量 x 零件名稱)

6 x Slide Beam-016	1 x 37mm DC Motor 200RPM	2 x D shaft 4*56mm	30 x Combination Screw M4*8
6 x Slide Beam-032	1 x 37mm DC Motor 50RPM	2 xD shaft 4*160mm	30 x Combination Screw M4*10
4 x Slide Beam-048	2 x 37mm Motor Bracket	4 x Shaft D8*496mm	30 x Combination Screw M4*14
2 x Slide Beam-080	1 x 2823-1F rushless Motor	2 x Shaft D4*240mm	30 x Combination Screw M4*16
4 x Slide Beam-096	2 x Brushless Motor Bracket	4 x Shaft Claming Hub 8mm	30 × CombinationScrew M4*20
4 x Slide Beam-112	2 x Brushless Motor ESC	2 x Bearing F688ZZ	30 x Combination Screw M4*30
4 x Slide Beam-144	2 x Servo MS-12A	4 x Flexible Coupling 4*4mm	30 x Combination Screw M4*35
2 x Slide Beam-176	2 x Mounting Bracket	6 x Shaft Collar 4mm	30 x Combination Screw M4*40
2 x Slide Beam-192	2 x Rudder Bracket	6 x Shaft Collar 8mm	20 x Headless Screw M3*5
2 x Slide Beam-256	4 x Virtual Axis	10 x Shaft Connector V3.0	20 x Headless Screw M3*8
4 x Slide Beam-320	1 x LI-PO Battery 3S	10 x Shaft Connector	20 x Cross Recess Screw M3*8-Countersunk Head
4 x Slide Beam-496	2 x Dual RGB Color Sensor	2 x Gear 16T	20 x Hex Lock Nut M3
4 x Square beam 2424-072	1 x Low Voltage Buzzer Alarm	4 x Gear 48T	20 x Hex Nut M3
2 x Square beam 2424-184	4 x Extend	2 x Gear 80T	20 x Hex Nut M4
2 x Square beam 2424-248	4 xmBuild Cable (200mm)	2 x Linear Motion Slide Unit 8mm	20 x Hex Lock Nut M4
4 x Square beam 2424-504	3 x mBuild Cable (600mm)	4 x Sliding Block A1	16 x Roller
8 x Bracket P3	50 x Track	2 x 180 Smart Encoder Motor	6 x Threaded Shaft 4*39mm
10 x Stiffener 1616-008-M4	50 x Track Axle 30mm	2 x Open-end Timing Belt (5m)	16 x Timing pulley slice
2 x Belt Connector	4 x Plastic Timing Pulley 18	16 x Aluminum Sleeve 464mm	8 x Aluminum Sleeve 466mm
4 x Double Gear Rack	2 xPlastic Timing Pulley 62
